| Model | 1x(C)-140d-HR-16 |
|---|---|
| Mag (x) | 1 |
| Image circle (mm) | 16 |
| FOV diagonal (mm) | 16 |
| WD (mm) | 140 |
| Resolution (um) | 5.3 |
| f/# | 8 |
| NAO | 0.0625 |
| DOF (mm) | 0.18 |
| Telecentricity (<degree) | 0.1 |
| Distortion (%) | 0.03 |
| coaxial | o/x |
| iris | x |
| mount | c |
| camera | 1 |
| TTL (mm) | 380 |

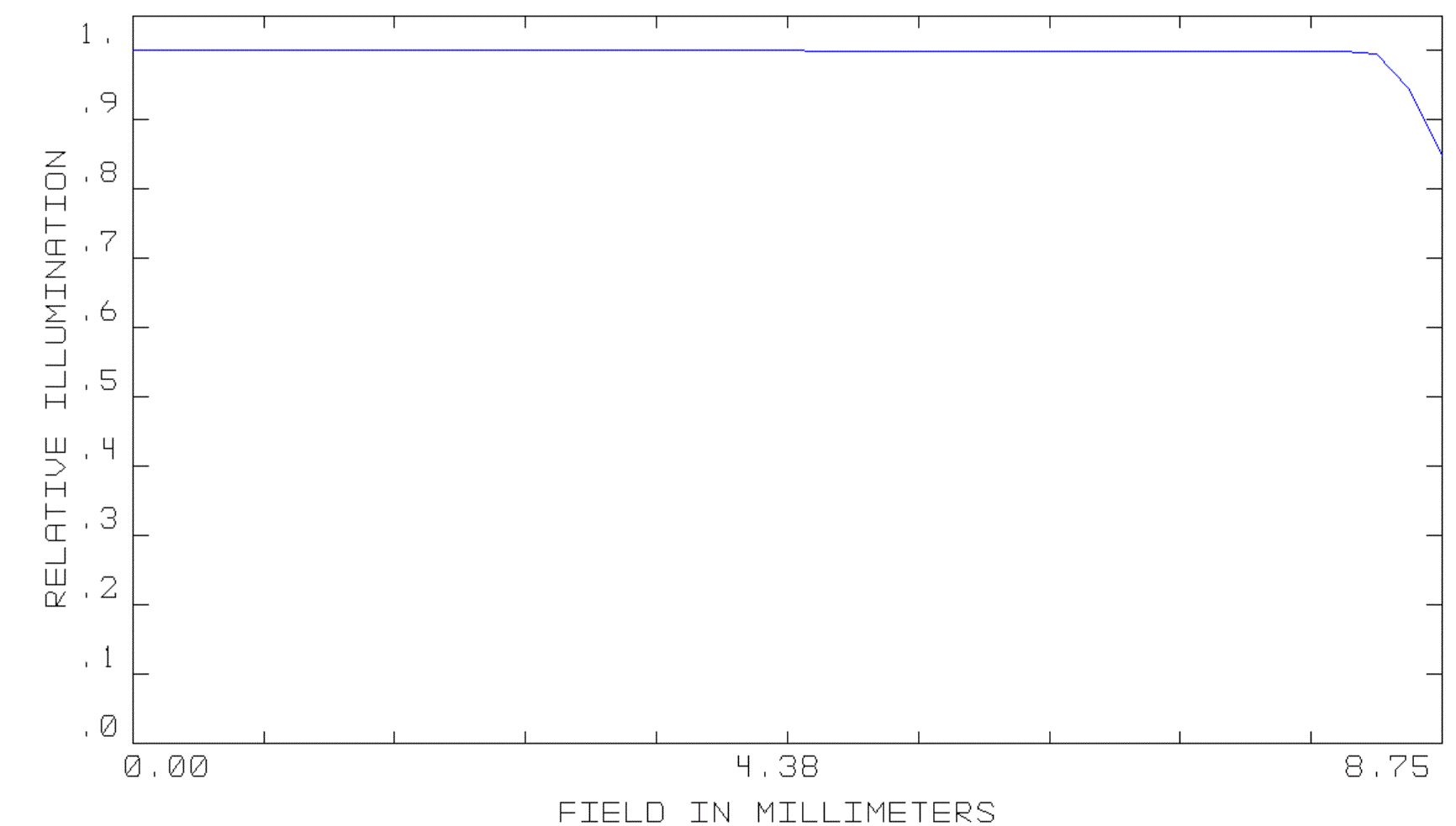

| Notes | relative illumination 85% at 1.1" |
1xC-140d-HR-16.pdf
(55.9K)
.
