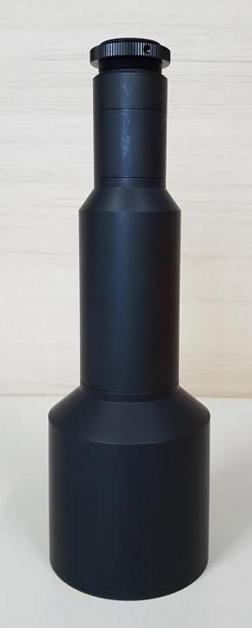

| Model | 0.25x-289d-11 |
|---|---|
| Mag (x) | 0.25 |
| Image circle (mm) | 11 |
| FOV diagonal (mm) | 44 |
| WD (mm) | 289 |
| Resolution (um) | 17.9 |
| f/# | 6.4 |
| NAO | 0.02 |
| DOF (mm) | 2 |
| Telecentricity (<degree) | 0.08 |
| Distortion (%) | 0.1 |
| coaxial | x |
| iris | x |
| mount | c |
| camera | 2/3 |
| TTL (mm) | 516.2 |
| Notes |
