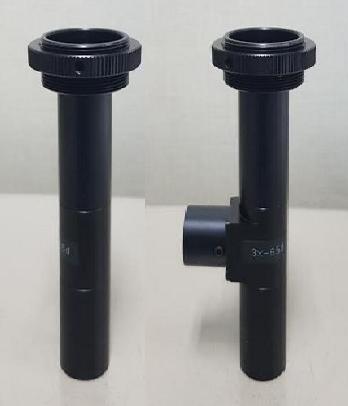

| Model | 3x(C)-65d-ST-11 |
|---|---|
| Mag (x) | 3 |
| Image circle (mm) | 11 |
| FOV diagonal (mm) | 2.7 |
| WD (mm) | 66.5 |
| Resolution (um) | 5 |
| f/# | 21.4 |
| NAO | 0.07 |
| DOF (mm) | 0.15 |
| Telecentricity (<degree) | 0.1 |
| Distortion (%) | 0.08 |
| coaxial | o/x |
| iris | x |
| mount | c |
| camera | 2/3 |
| TTL (mm) | 173 |
| Notes |
3xC-65d-ST-11.pdf
(82.1K)
.
| Model | 3x(C)-65d-ST-11 |
|---|---|
| Mag (x) | 3 |
| Image circle (mm) | 11 |
| FOV diagonal (mm) | 2.7 |
| WD (mm) | 66.5 |
| Resolution (um) | 5 |
| f/# | 21.4 |
| NAO | 0.07 |
| DOF (mm) | 0.15 |
| Telecentricity (<degree) | 0.1 |
| Distortion (%) | 0.08 |
| coaxial | o/x |
| iris | x |
| mount | c |
| camera | 2/3 |
| TTL (mm) | 173 |
| Notes |
