| Model | 1.5x(C)-138d-16 |
|---|---|
| Mag (x) | 1.5 |
| Image circle (mm) | 16 |
| FOV diagonal (mm) | 10.7 |
| WD (mm) | 138 |
| Resolution (um) | 4.8 |
| f/# | 10.5 |
| NAO | 0.07 |
| DOF (mm) | 0.13 |
| Telecentricity (<degree) | 0.1 |
| Distortion (%) | 0.05 |
| coaxial | o/x |
| iris | x |
| mount | c |
| camera | 1 |
| TTL (mm) | 371.5 |

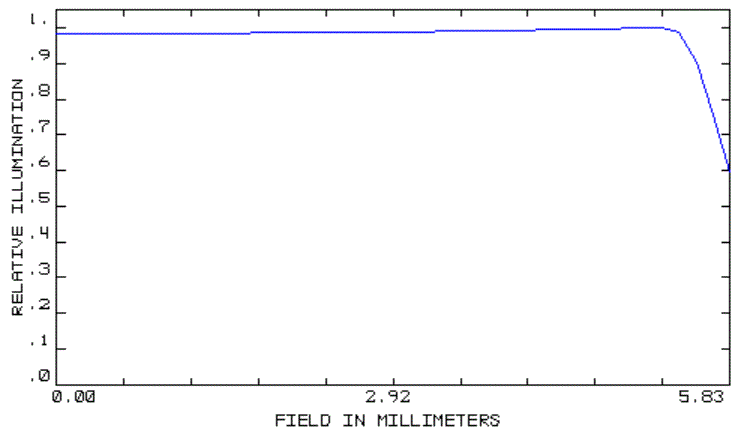

| Notes | relative illumination 60% at 1.1" |
1.5xC-138d-16.pdf
(27.8K)
.
