| Model | 2x(C)-140d-16 |
|---|---|
| Mag (x) | 2 |
| Image circle (mm) | 16 |
| FOV diagonal (mm) | 8 |
| WD (mm) | 140.5 |
| Resolution (um) | 4.16 |
| f/# | 12 |
| NAO | 0.083 |
| DOF (mm) | 0.1 |
| Telecentricity (<degree) | 0.1 |
| Distortion (%) | 0.05 |
| coaxial | 0 |
| iris | x |
| mount | c |
| camera | 1 |
| TTL (mm) | 384.4 |

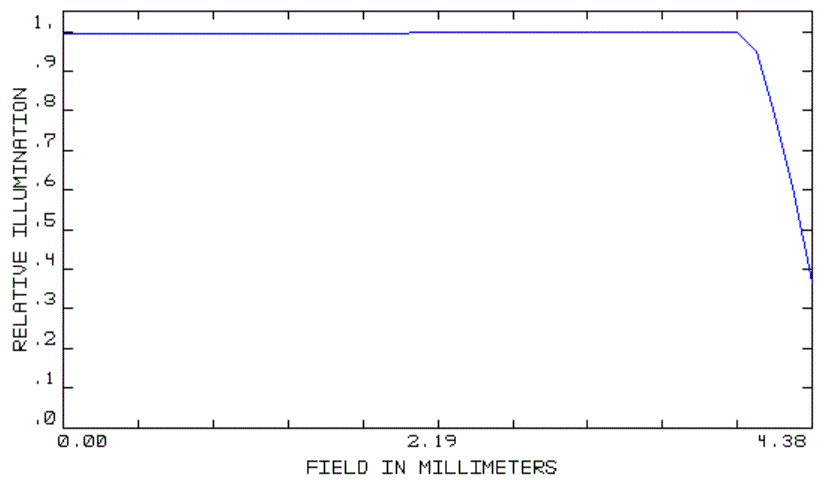

| Notes | relative illumination 37% at 1.1" |
2xC-140d-16.pdf
(26.3K)
.
